Capability at scale

Cost-effective telemetry for OEMs.

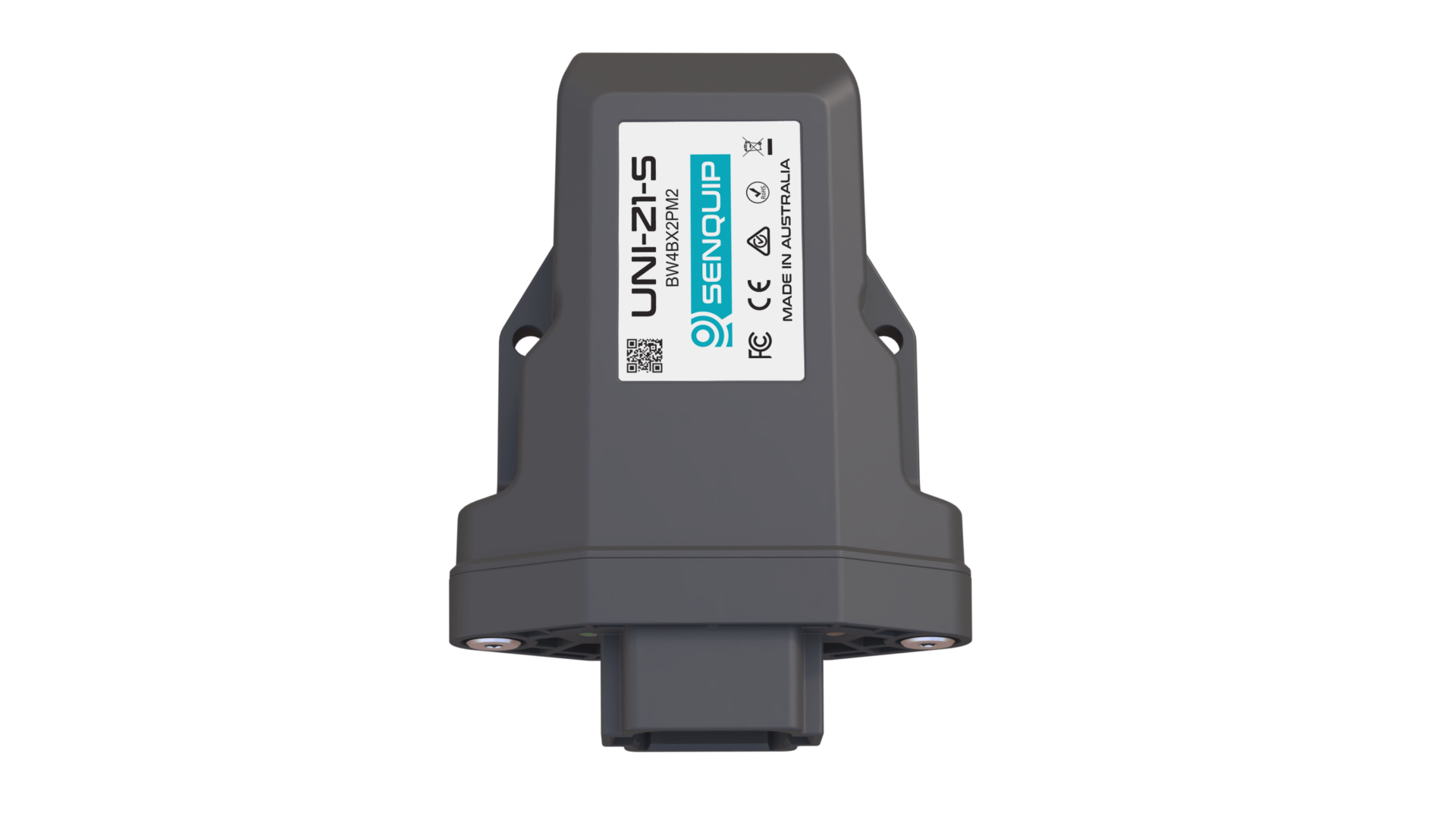

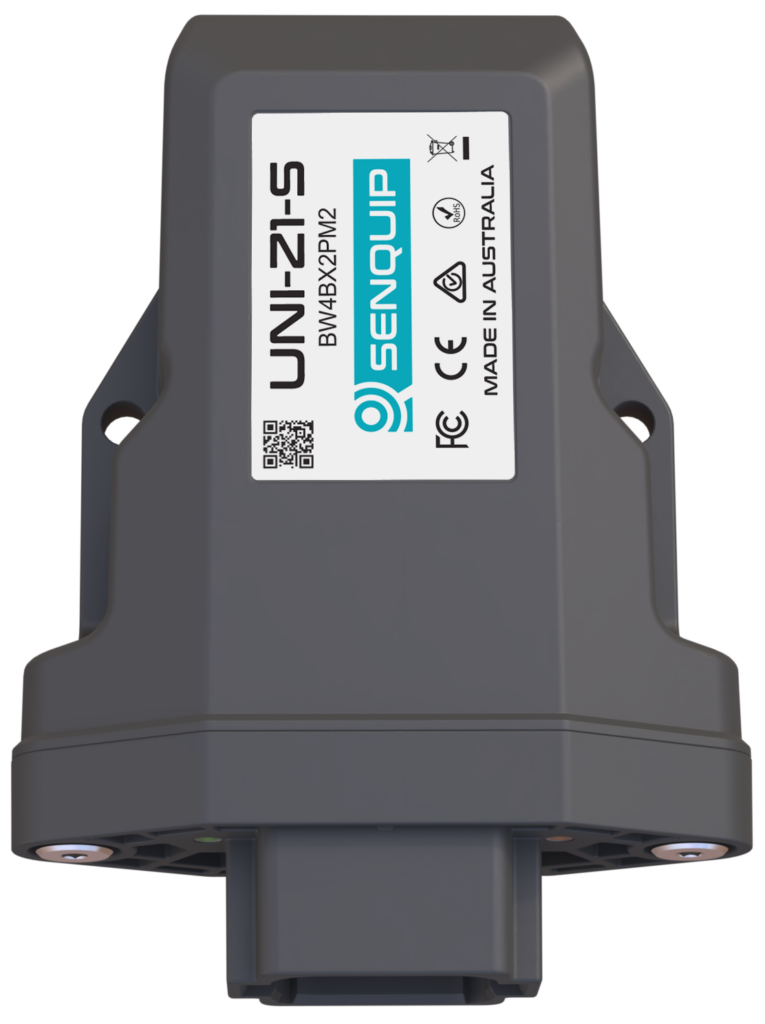

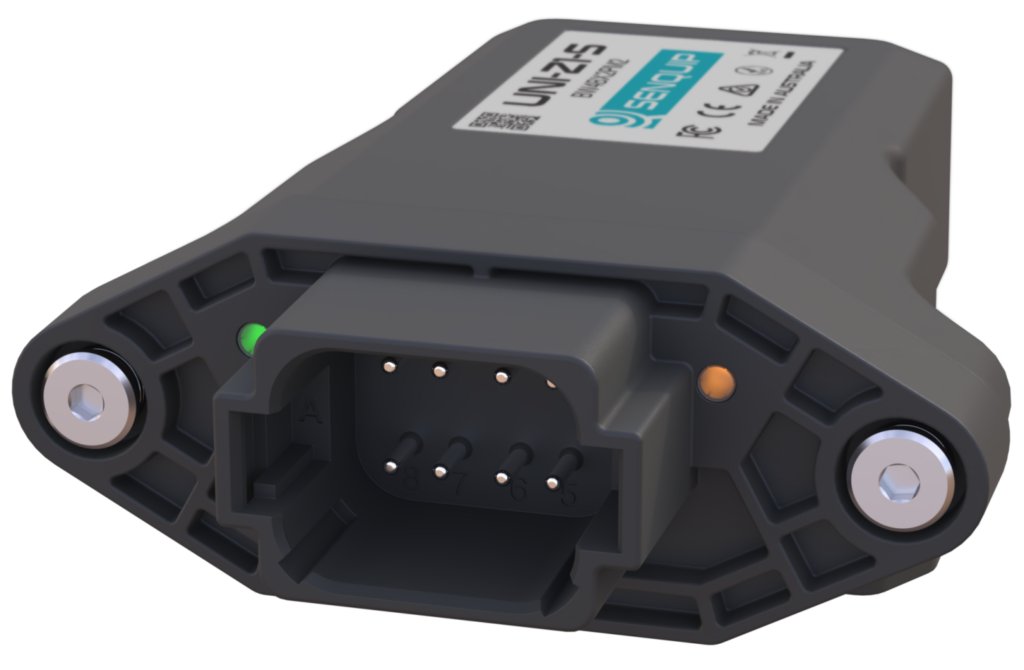

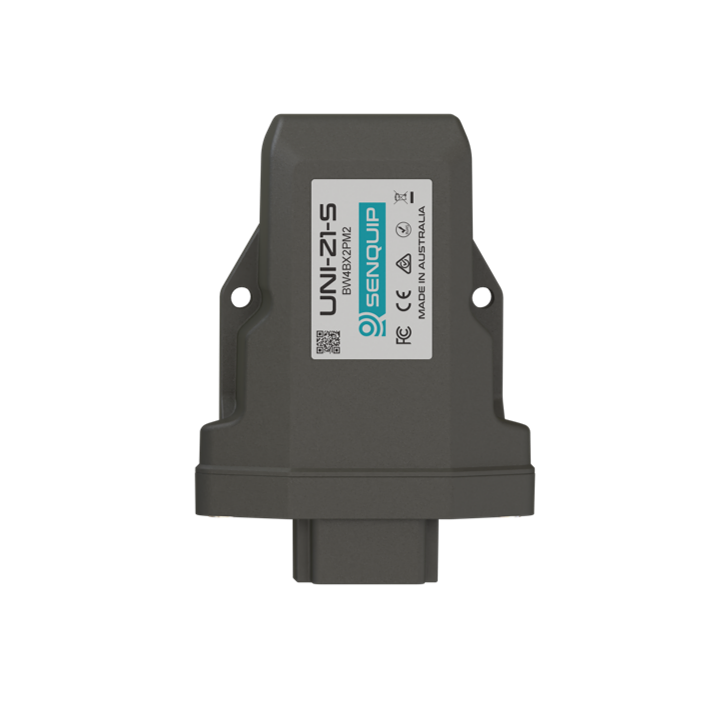

SENQUIP UNI

Cost-effective telemetry for OEMs and fleets. Ideal for repeatable machine designs deployed at scale.

Key features

Cost Effective

Designed for OEM and fleet deployments, delivering powerful telemetry, control and connectivity at a cost that makes deployment at scale practical.

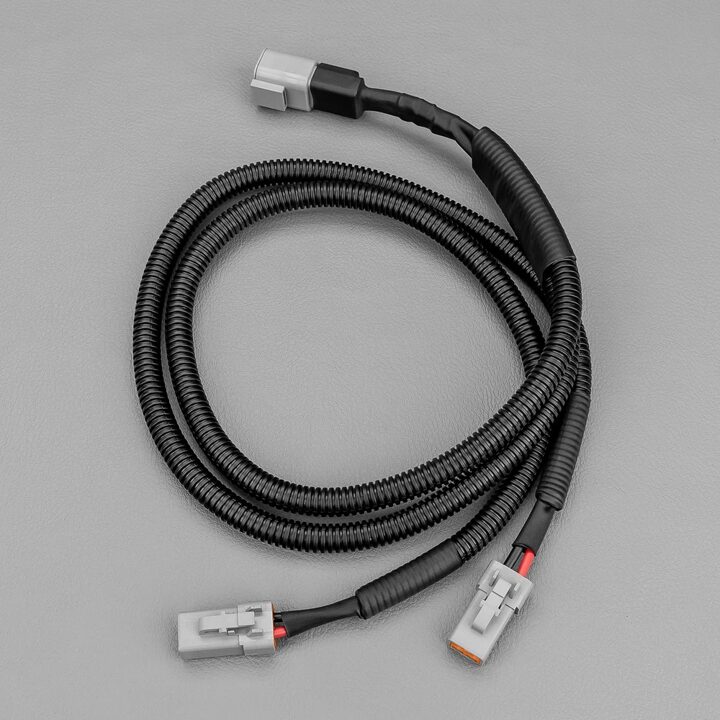

Deutsch Integration

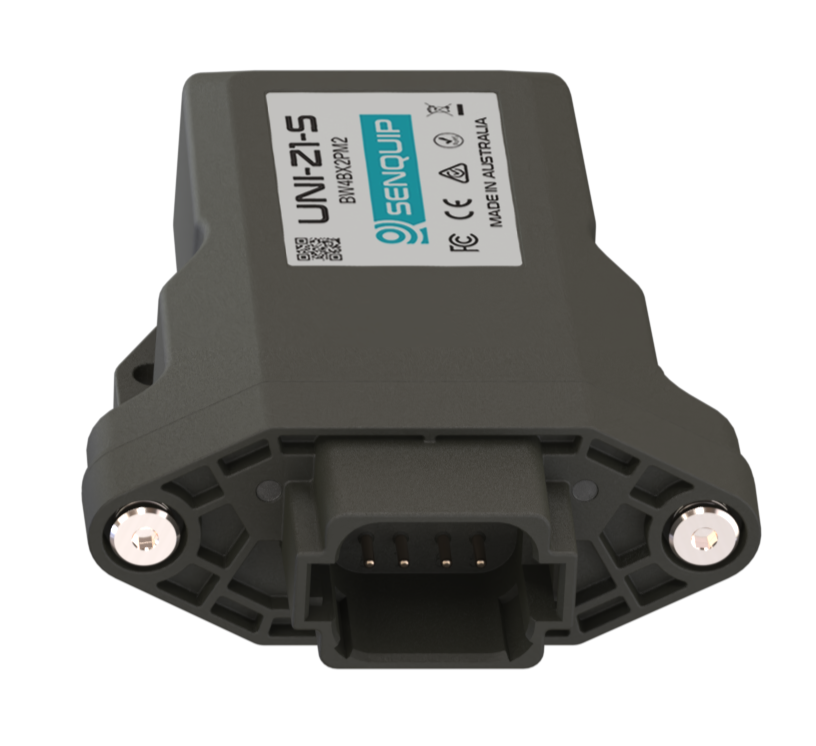

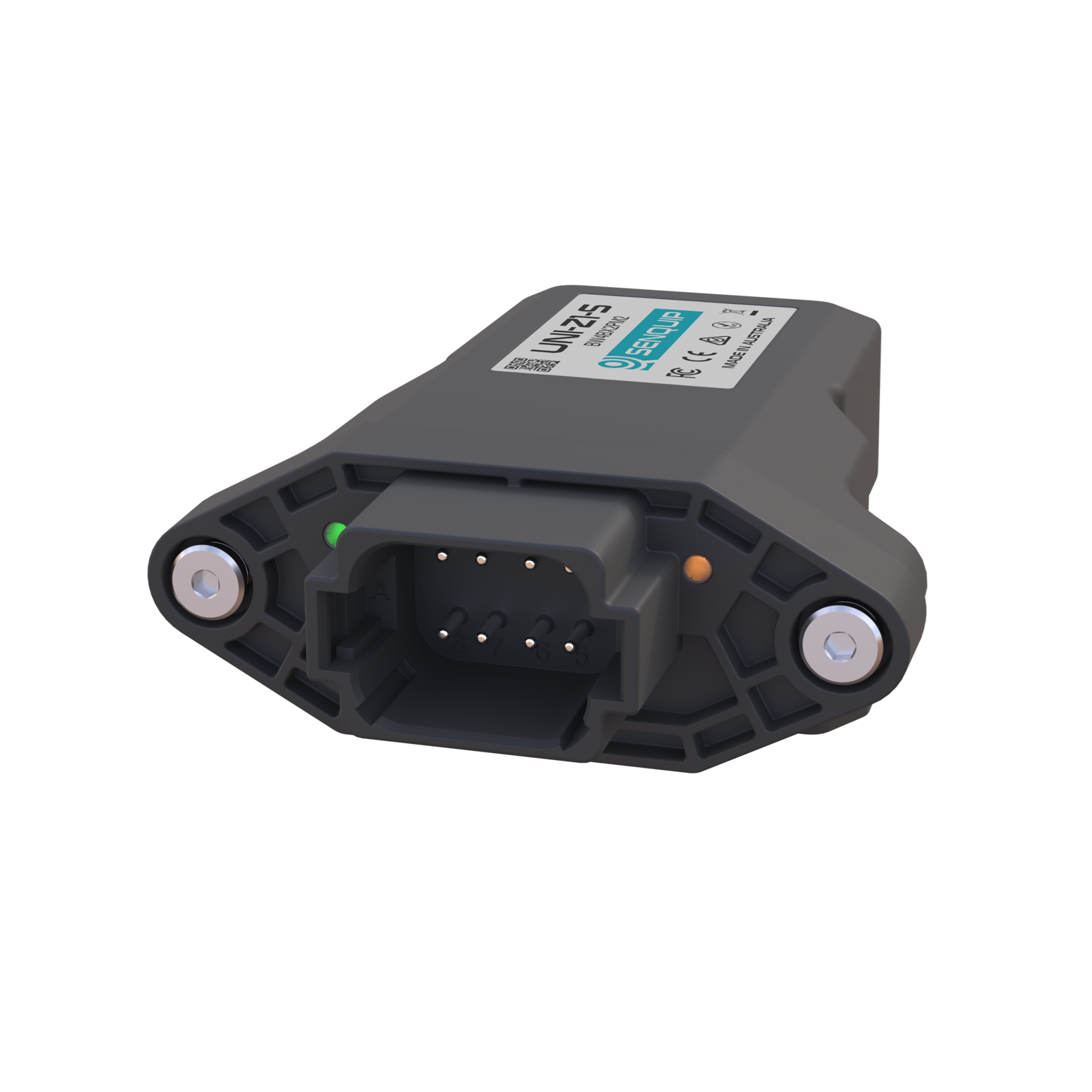

Integrated Deutsch connector provides a rugged, production-ready interface for fast installation and straightforward integration into OEM wiring harnesses.

Rugged

Rugged IP67 enclosure with integrated antennas, designed for installation directly on machines and equipment exposed to harsh environments.

LTO Battery

An LTO backup battery delivers enhanced safety, wide-temperature operation and thousands of charge cycles for reliable long-term use.

economical

cellular

satellite

battery

CAN Bus

J1939

RS485

Modbus

1-wire

Voltage

Pulse

Frequency

Duty Cycle

Switch

Accelerometer

GNSS

Bluetooth

Output

Tamper

Magnetic

Scripting

Cost-effective telemetry designed for OEMs and fleets, making it practical to add monitoring, control and connectivity across large numbers of machines.

Global LTE Cat-1 bis connectivity provides reliable communications across a wide range of cellular networks, making ORB ideal for equipment deployed across different countries and regions.

Ready for Starlink Direct to Cell connectivity, extending communications beyond terrestrial cellular coverage to assets operating in the most remote locations.

The largest backup battery in the Senquip family, with 1500 mAh capacity. LTO technology delivers thousands of charge cycles, excellent temperature performance and long service life, making it ideal for solar-powered and unattended installations.

CAN Bus is the communication network used by modern engines, machine controllers and industrial equipment. A single network can carry hundreds of measurements, including engine speed, temperatures, pressures and fault codes. Senquip supports both Classical CAN and CAN FD for monitoring and control.

J1939 is the most common CAN-based protocol used by diesel engines and engine controllers. Senquip devices can decode standard and proprietary J1939 messages, making it easy to monitor engine performance, fuel consumption, fault codes and operating hours.

RS485 is a robust serial interface designed for long cable runs and noisy industrial environments. It is commonly used to connect sensors, PLCs, variable speed drives and other industrial equipment. Senquip supports RS485 for reliable data acquisition and control.

Modbus is one of the world’s most widely used industrial communication protocols and typically operates over RS485. Senquip typically acts as a Modbus Master, allowing it to read measurements from sensors, controllers and drives, and control compatible equipment. It can however act as a slave and pretend to be a sensor.

Connect directly to 1-Wire sensors for simple, reliable monitoring of temperature and other measurements using minimal wiring.

Measure analogue voltages from sensors, battery systems and control circuits. Built-in calibration converts raw voltages into meaningful engineering units such as fuel level, pressure or temperature.

Count pulses from flow meters, water meters, rain gauges and other pulse-output devices. Senquip can also measure pulse frequency to calculate flow rates, speed and equipment utilisation.

Measure frequency outputs from sensors, magnetic pickups and rotating machinery. Frequency can be used to monitor speed, engine RPM, flow or any sensor that reports information as a pulse train.

Measure the percentage of time a digital signal is ON compared with its total cycle time. Duty cycle is commonly used for PWM control signals, proportional valves and electronically controlled actuators.

Monitor simple ON/OFF signals such as float switches, pressure switches, engine run signals, alarm contacts and door switches. Ideal for detecting machine state, alarms and equipment status.

The integrated three-axis accelerometer measures movement, tilt and vibration. It can detect machine operation, harsh impacts, excessive vibration and equipment orientation without additional sensors.

ntegrated GNSS provides accurate position, speed and time using GPS, Galileo, GLONASS and BeiDou satellites. Ideal for asset tracking, geofencing, utilisation monitoring and theft prevention.

Receive data wirelessly from Bluetooth Low Energy (BLE) sensors and beacons. Monitor temperature, pressure, humidity, battery status and many other parameters without additional wiring.

Each multifunction I/O can switch power, ground or configurable voltages to control relays, valves, lights and other field devices. Outputs can be operated from settings, scripts or remote commands.

An integrated tamper switch detects when the enclosure is opened. Tamper events can generate immediate alerts, providing additional security and a record of authorised or unauthorised access.

An internal magnetic switch allows the device to wake up, enter setup mode or trigger custom functions without opening the enclosure. Simply place a magnet over the marked position on the device.

Senquip devices include an onboard JavaScript engine for local automation and custom data processing. Create application specific control logic, decode proprietary protocols and automate machines—even without network connectivity.

Technical Specification

Feature	Description	UNI-Z1-S
Cellular	Cellular technology	4G LTE CAT-1bis internal antenna
Cellular Region	Regions supported	Global
SIM	SIM card options	Nano SIM + ESIM
Wi-Fi	802.11 b/g/n, 2.4GHz	Yes Internal antenna
Satellite	Starlink Direct to Cell	Ready
GPS	GPS, BeiDou, Galileo and GLONASS	Yes Internal antenna
Bluetooth	Bluetooth version 4.2	Yes
RS485	Data capture, Modbus and fully scripted modes	1 with configurable termination
CAN	CAN 2.0, no limitation on protocol support	1 with configurable termination
1-Wire	1-Wire interface	1
Multipurpose IO	Configurable IO channels	2
IO measurement functions	Analog voltage	1
	Digital input	2
	Frequency, pulse, duty cycle	1
	Configurable pullup resistor	Yes
Outputs	Switch to ground	2
Accelerometer	Pitch, roll, angle, vibration, impact detection functionality. Wake from sleep.	Yes
Magnetic Sensor	Configurable to wake device, enter setup mode, trigger script action	Yes
Tamper	Inbuilt tamper detection	Tamper switch
Power	10VDC to 32VDC, solar with inbuilt regulator	Yes
Backup Battery	Internal rechargeable backup battery technology	LTO 7.2V 750mAh
Edge Processing	Write and deploy JavaScript applications to manipulate data, create alerts, control devices and more	Yes
Configuration	Via embedded webserver, Senquip connect App, or online at the Senquip Portal	Yes
Third Party Endpoints	UDP, MQTT/S and HTTP/S with customisable data packet formats supported	Yes
Security	Secure boot, encrypted data storage and PKI-secured communications with device-specific certificates	Yes
Environmental	Operating temperature	-30°C to 80°C
	Battery charge temperature range	-30°C to 80°C
	IP rating	IP67
Certification	Certifications and compliance	CE, FCC, RCM, RoHS and REACH
	Cybersecurity	CE RED Cyber
Part Number	Senquip device ordering code	UNI-Z1-S
